ICS425
Speed up Production.The ICS425 weighing indicators effectively handle simple applications while still remaining accurate and reliable.
Optimize Your Production Processes
The Straight Weighing solution optimizes your production processes in Straight Weighing applications.
Durable and Rugged
Tough enough for industrial environments with aluminum die cast housing and robust foil keypad.
Dust Proof
Optimal for usage in dusty environment thanks to IP65 ingress protected housing.
Specifications – ICS425
| Scale | Analog IDNet Precision |
| Communication | Digital I/O Ethernet TCP/IP RS232 RS422/485 USB device/host WLAN |
| Mounting Flexibility | Column Desk Wall |
| Voltage | 100 – 240 VAC Internal battery |
| Display | Graphic LCD with backlight |
| Dimensions (LxHxW) | 6.5 in x 3.1 in x 9.8 in (164 mm x 78 mm x 284 mm) |
| Housing | Aluminum Die Casting |
| Interfaces | Digital I/O Ethernet TCP/IP RS232 RS422/485 USB device/host WLAN |
| Protection Rating | IP65 |
| Hazardous Approval | Non-Hazardous Area |
| Scale Channels | 1 |
| Power Supply | 100 – 240 VAC, Internal Battery |
| Display Size | 5 in |
| Housing material | Aluminum |
| Application Area | Bench, Portable, and Floor |
| Automation | Interactive Weighing |
| Material | Aluminum die casting |
| Platform Type | Terminals and Indicators |
| Scale Interface | Analog IDNet Precision |
| Mounting Type | Column Desk Wall |
| Interfaces (Optional) | Discrete I/O Ethernet RS422 RS485 USB WLAN |
| Weighing Platform | Analog IDNet Precision |
| Application | Straight Weighing |
| Hygienic Design | No |
| Custom programmable | No |
| Legal for Trade | NTEP OIML |
| Applications | Straight Weighing |
| Data Management | Convenient Printing: Easy creation of print & label templates Custom Print Formats: Odette, AIAG, Galia etc. |

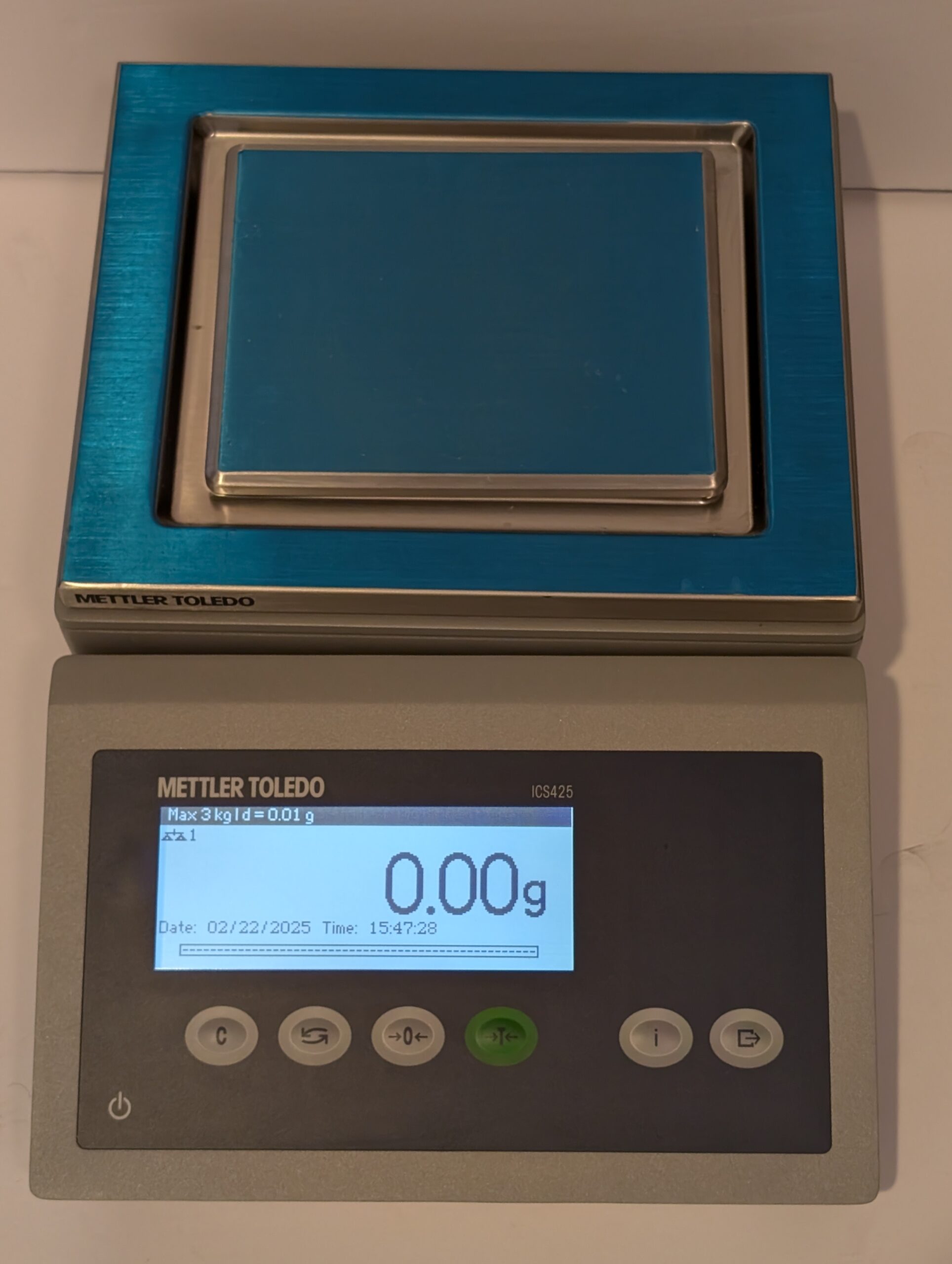

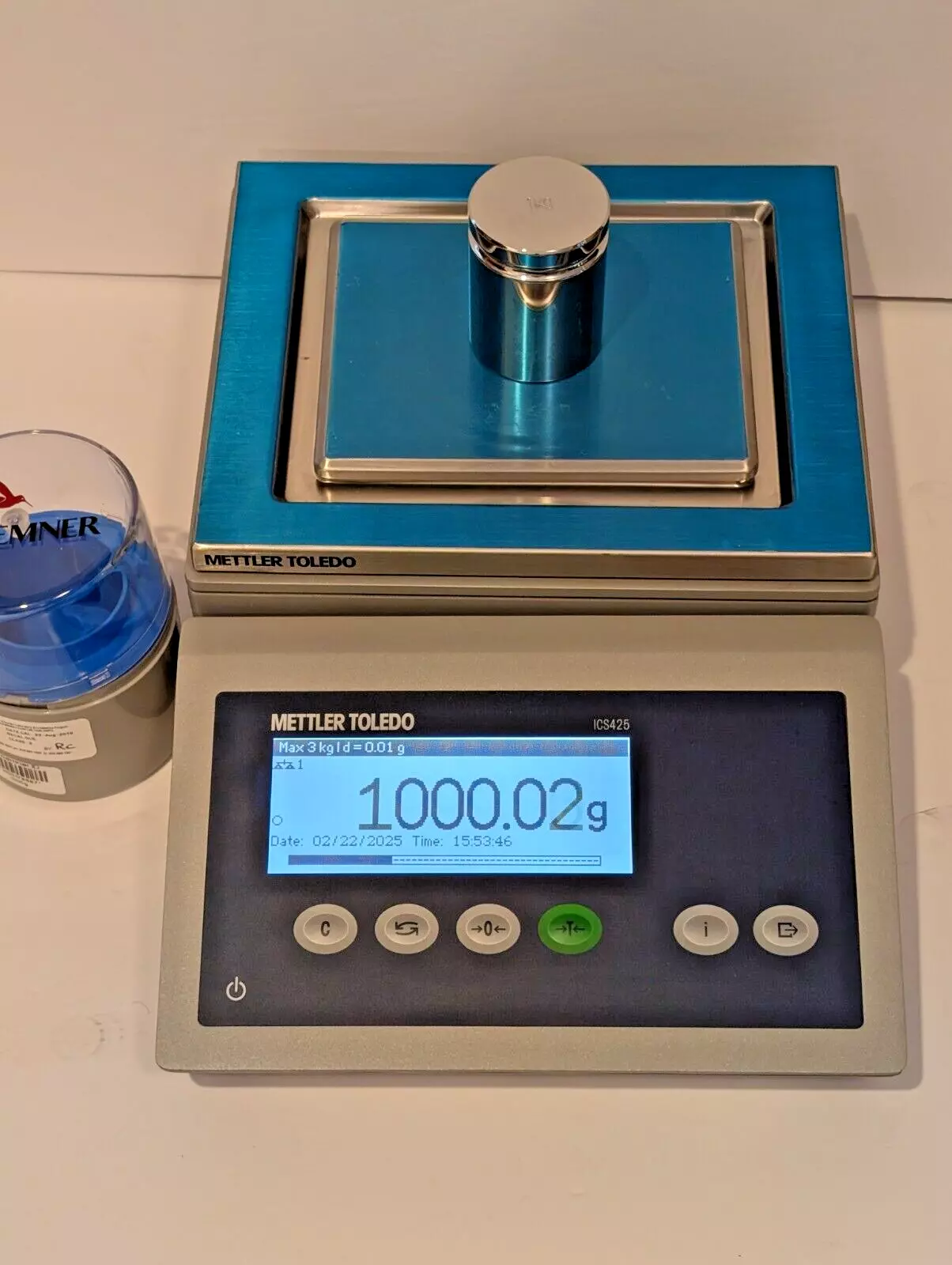

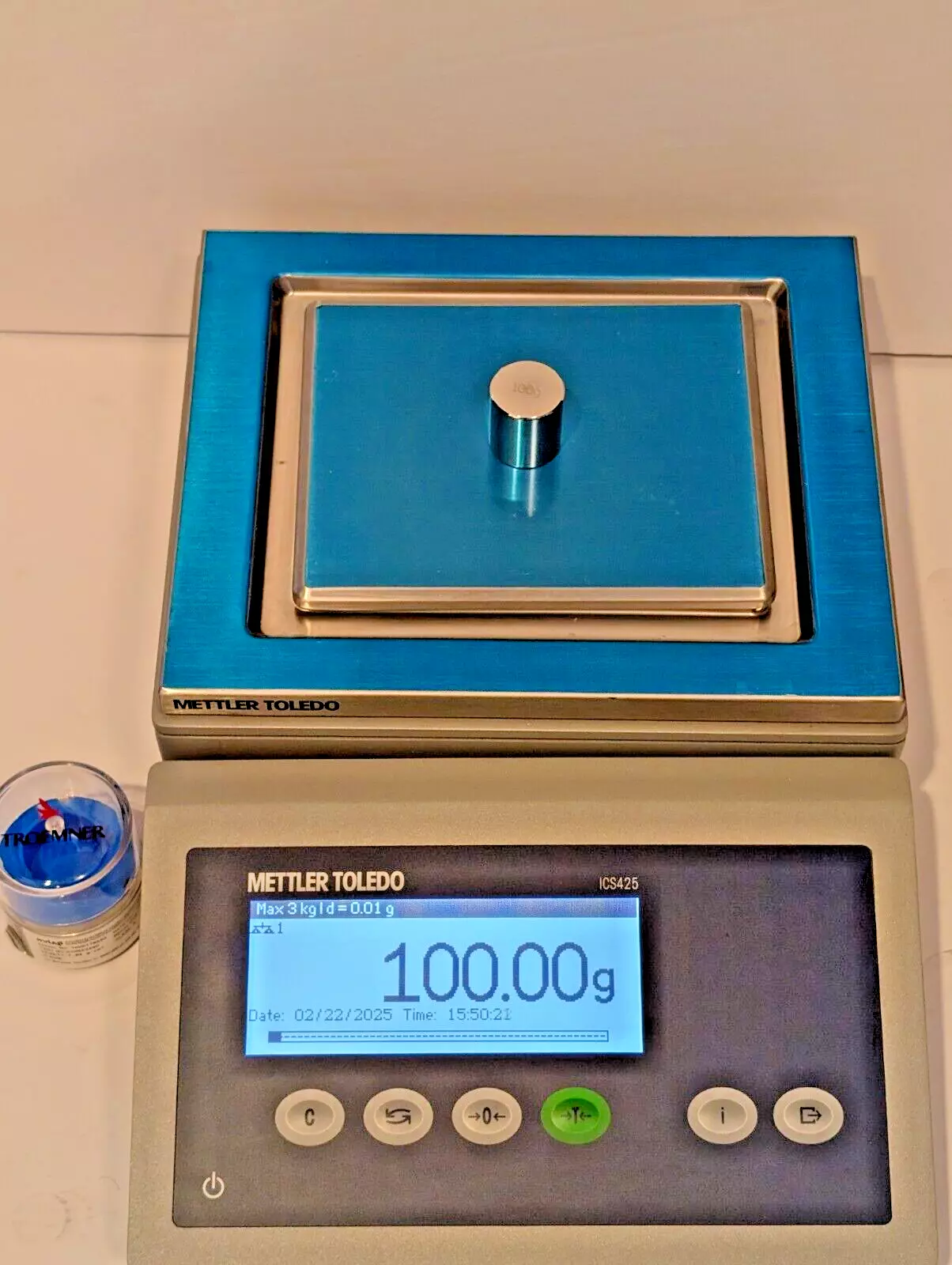

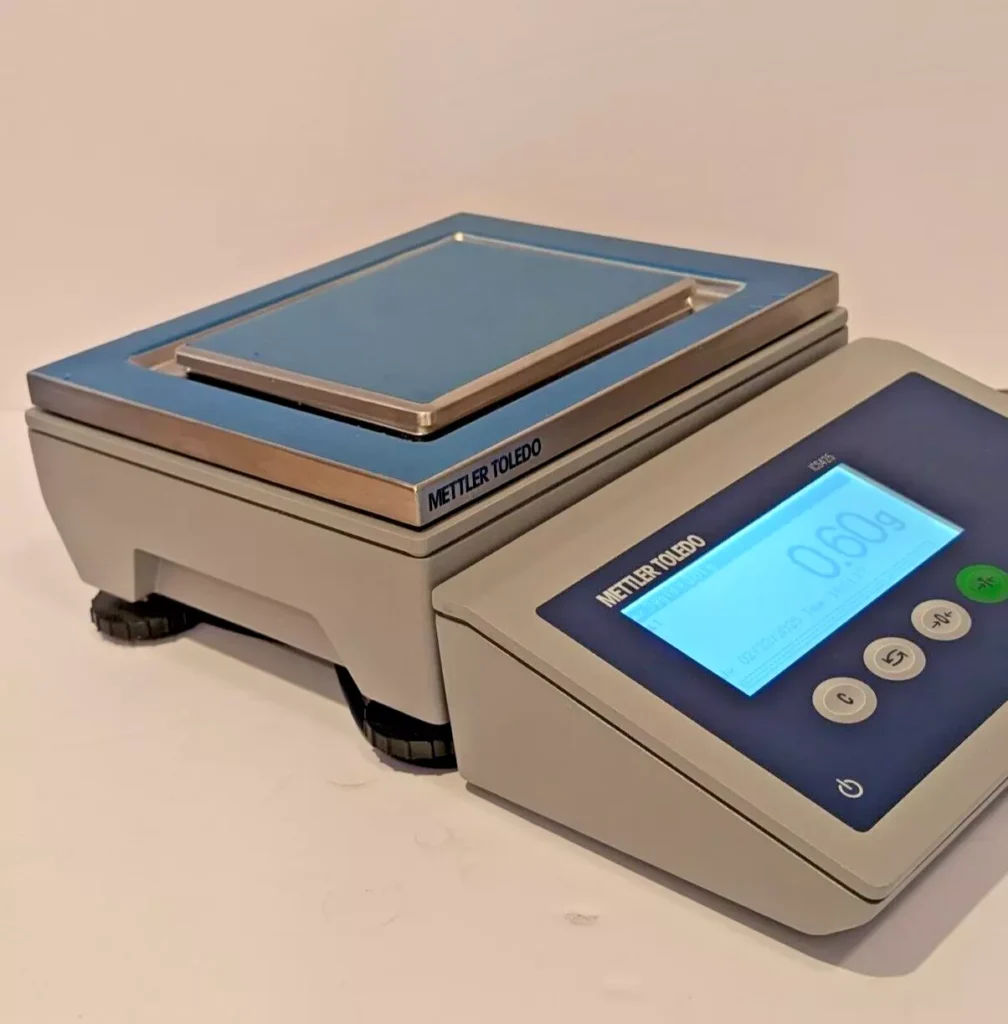

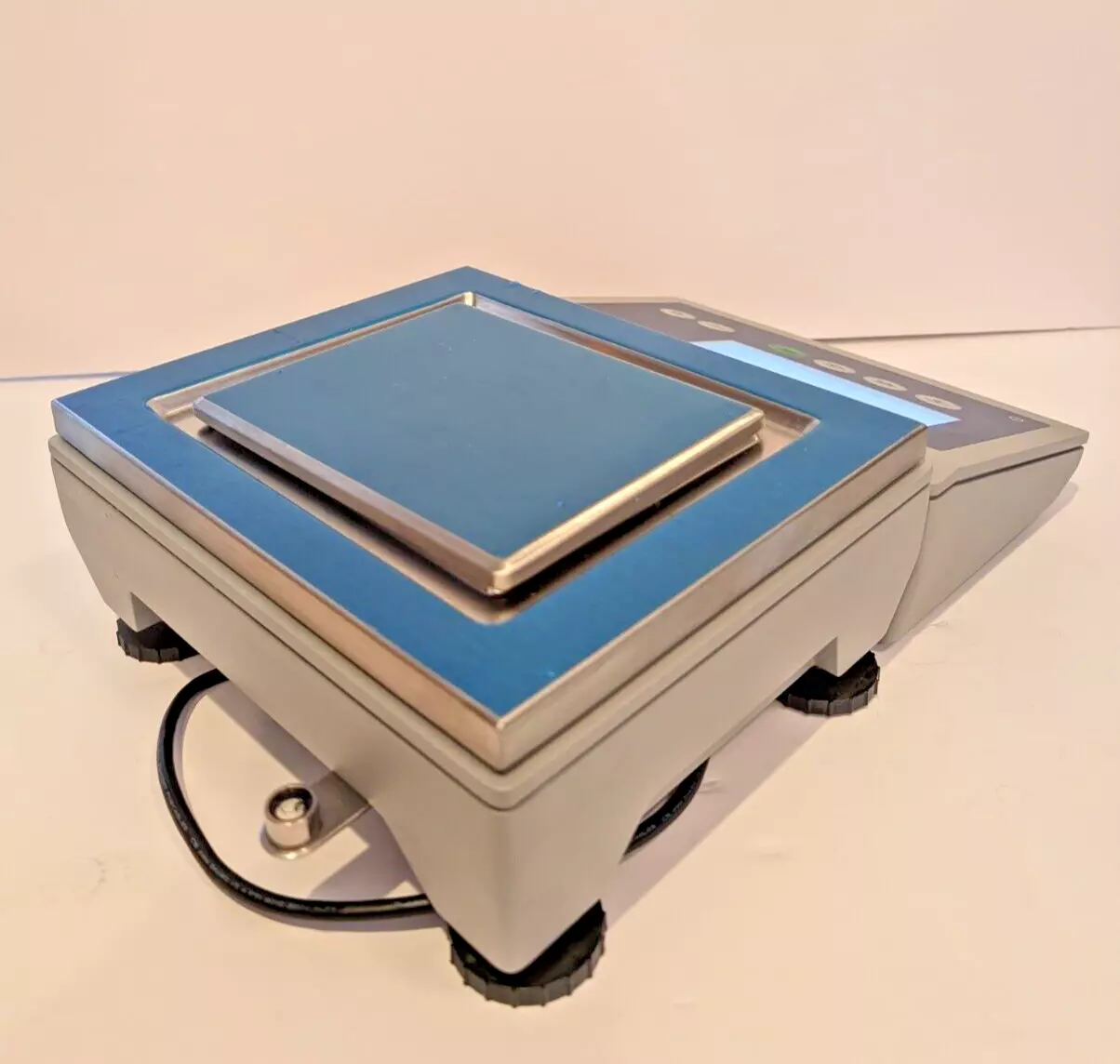

Compact Scale ICS425k-3XS/f
Highly Precise.
Greater Manufacturing Accuracy and Quality
The ICS425, made with MonoBloc® Technology, is the basic weighing level solution optimized for quick and easy weighing applications.
Durable and Rugged
Tough enough for use in industrial environments with aluminum die cast housing, overload protection and robust foil keypad.
Specifications – Compact Scale ICS425k-3XS/f
| Maximum Capacity | 6 lb (3 kg) |
| Readability | 0.00002 lb (0.01 g) |
| Readability (Certified) | 0.0002 lb (0.1 g) |
| Repeatability (sd) | 0 lb (0.001 g) |
| Platform Size (LxHxW) | 5.1 in x 3.7 in x 6.3 in (130 mm x 95 mm x 160 mm) |
| Material | Aluminum die casting |
| Protection Rating | IP54 |
| Repeatability | 0.00002 lb |
| Hazardous Approval | No |
| Housing | Aluminum Die Casting |
| Interfaces | RS232 |
| Display | Graphic LCD with backlight |
| Repeatability, typical | 0.001 g |
| Repeatability, (typical) | 0 lb |
| Weighing Pan Dimensions (LxW) | 228 mm x 228 mm |
| Application Software | Dynamic weighing Simple weighing |
| Data Interface | Ethernet Serial USB |
| Hazardous Area | Non-hazardous area |
| Legal for Trade | NTEP OIML |
| Applications | Dynamic weighing Simple Weighing |
| Environment | Dry (<IP65) |
| Voltage | AC Version Battery Version |
| Scale Interface | SICSpro |
| Interfaces (Optional) | Discrete I/O Ethernet RS422 RS485 USB |
| Hygienic Design | No |
| Data Management | Convenient Printing: Easy creation of print & label templates Custom Print Formats: Odette, AIAG, Galia etc. |
| Platform Type | Compact Scale |
