Description
The Zephyrus Series Diaphragm Vacuum Pumps are two-stage pumps with 8 mbar ultimate vacuum. Zephyrus is suitable for the vast majority of cannabis applications including ethanol evaporation and residual solvent purging. Other common applications are filtration in winterization, solid phase extraction and other chromatography applications. All media (solvent) exposed parts are made from corrosion resistant PTFE material.
Safety
- ETL and CE rated
- Overtemperature protection cutout
- Pump and housing with anti-corrosion coating
Features & Benefits:
- 100% water- and oil-free for lowest cost of ownership and to eliminate contaminated waste oil
- Benchmark chemical resistant thanks to all product and solvent exposed parts being made from PTFE and similar material
- Mechanical pumping assly and circuit boards with anti-corrosion treatment
- 100% solvent recovery possible thanks to water- and oil-less operation
- Extremely reliable with typical maintenance interval of 10,000 operating hours (5 years at 8h operation per day, 250 days per year)
- Low noise and vibration

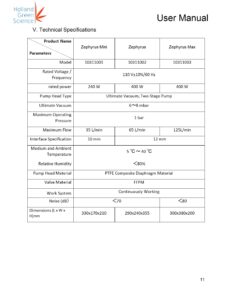

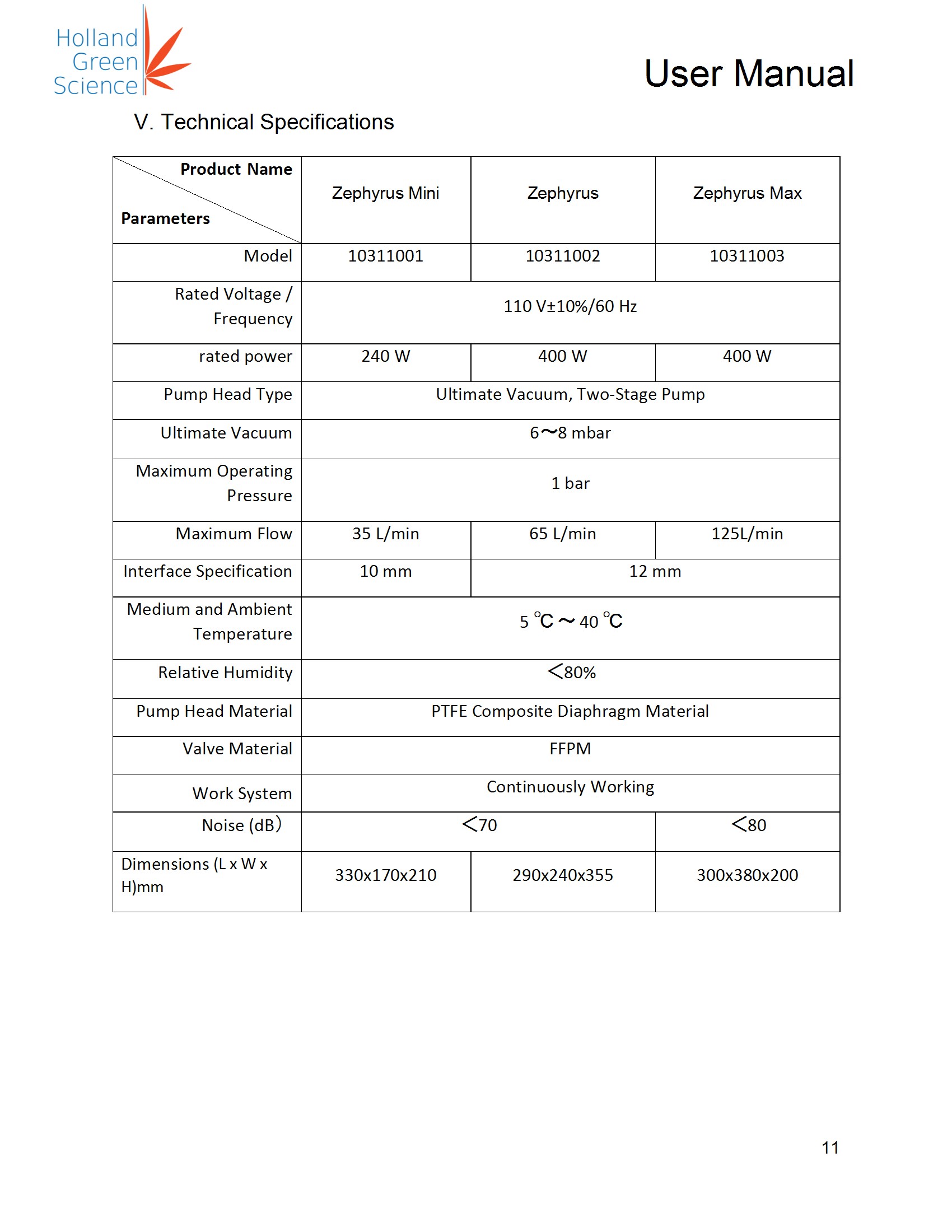

Technical Details
| Zephyrus Midi | |
| HGS SKU Number | 10311002 |
| Power Specification | 120V 60Hz 1ph – 400W |
| Pumping Speed | 65 L/min |
| Ultimate Vacuum | 8 mbar |
| Maximum Operating Pressure | 1 bar |
| Vacuum Connection Nozzle | 12 mm |
| Pump Head Material | PTFE |
| Composite Diaphragm Material | PTFE |
| Valve Material | FFPM |
| Continuous Operation | yes |
| Environmental Relative Humidity | <80% RH |
| Medium and Ambient Temperature | 5 °C ~ 40 °C |
| Dimension WxDxH (mm) | 240 × 290 × 355 |
