Purpose-Built Cold Chain Storage
PHCbi brand pharmaceutical refrigerators are engineered from the inside out to create, maintain and restore precise temperatures necessary for vaccine storage. Our purpose-built vaccine storage refrigerators are designed for temperature uniformity and stability that is not commonly found with household or commercial cabinets. PHCbi brand vaccine refrigerators satisfy current and evolving storage protocols essential for vaccine cold chain storage.

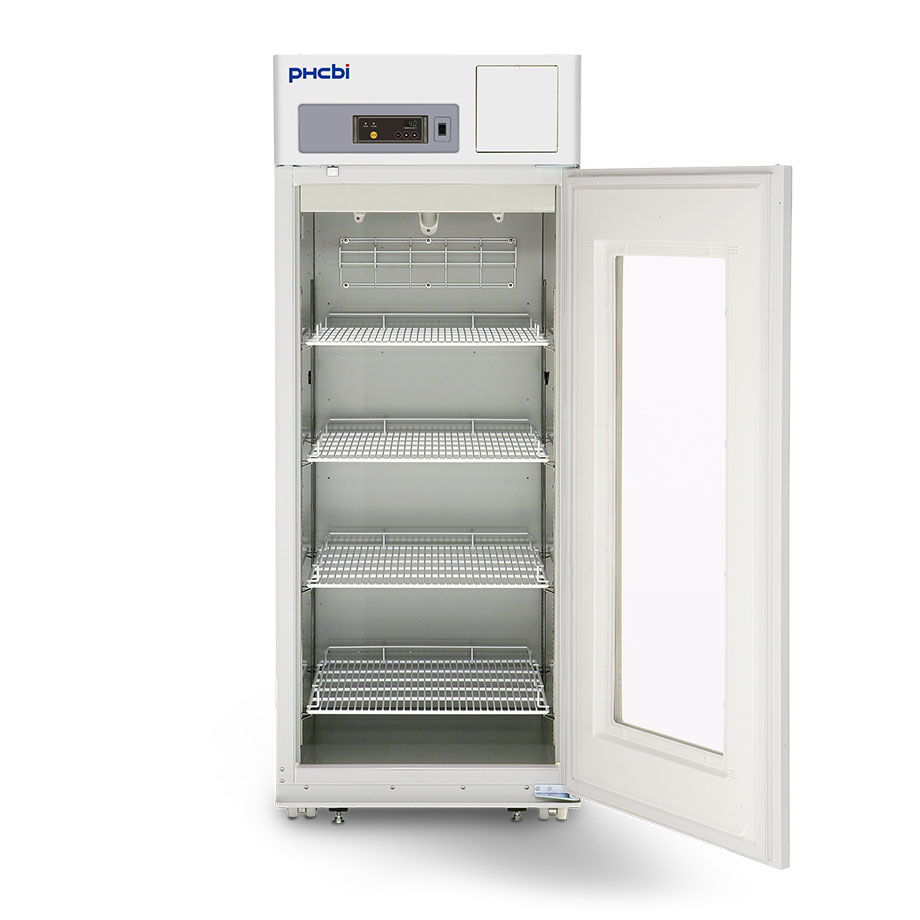

Adjustable Design
This eco-friendly pharmacy refrigerator offers a practical solution for storage with adjustable shelves and a wide setpoint range for varying laboratory applications, including biomedical storage and processing. The interior layout makes it ideal for running experiments that require changeable shelf configurations. The shelves can be arranged to accommodate all heights, and deep and strong enough to hold processing equipment and most devices.
Cycle Defrost System
Defrosting is performed automatically and only when required, protecting contents against unnecessary temperature rise. The defrosting heater provides protection from freezing in extremely low ambient temperature conditions.
Microprocessor Controller and Alarms
The temperature control system, with a microprocessor, maintains true temperature at the set level and is unaffected by outside ambient temperature. Audible and flashing LED visual alarms alert the user to the unlikely event of either a high or low temperature status.
Uniform Temperature with Forced Air Circulation
The fan-forced air circulation and efficient temperature recovery properties allow for precise temperature conditions.
Efficient and Superior Upright Pharmacy Refrigerator
High performance compressors and components deliver fast temperature pull-down, recovery and tolerance for high ambient temperature conditions. This energy efficient system improves LEED scores and contributes to global sustainability.
EXTERNAL DIMENSIONS | 30.3″ W x 36.2″ D x 76.9″ H (770 x 920 x 1955 mm)* |
---|---|
INTERNAL DIMENSIONS | 25.6″ W x 27.9″ D x 59.0″ H (650 x 710 x 1500 mm) |
EFFECTIVE CAPACITY | 24.2 cu.ft. (684 L) |
INSULATION | CFC free urethane |
SHELVES | 4 shelves (adjustable) |
ACCESS PORT | 3: Left/right sides, ceiling (1.1″ (30 mm) diameter) |
COOLING METHOD | Uniformity forced air |
COMPRESSOR | Hermetic type, Output; 200 W |
REFRIGERANT | SNAP Approved HFO R-513A |
DEFROSTING | Electronically monitored evaporator |
TEMPERATURE CONTROL RANGE | 2 to 23ºC |
ALARMS | High temperature, low temperature, door ajar, power failure |
NET WEIGHT | 334 lbs (174 kg) |
DOOR LOCK | Key |
TEMPERATURE CONTROL SYSTEM | Microprocessor Control System |
AREA FOOTPRINT | 9.08 sq.ft. (0.84 m2) |
DATA MANAGEMENT | Optional with LabAlert Monitoring System |
SOUND LEVEL | 48 dB(A) (background noise 20 dB(A)) |
ENERGY STAR CERTIFIED | ENERGY STAR Unique ID 2362229 |
