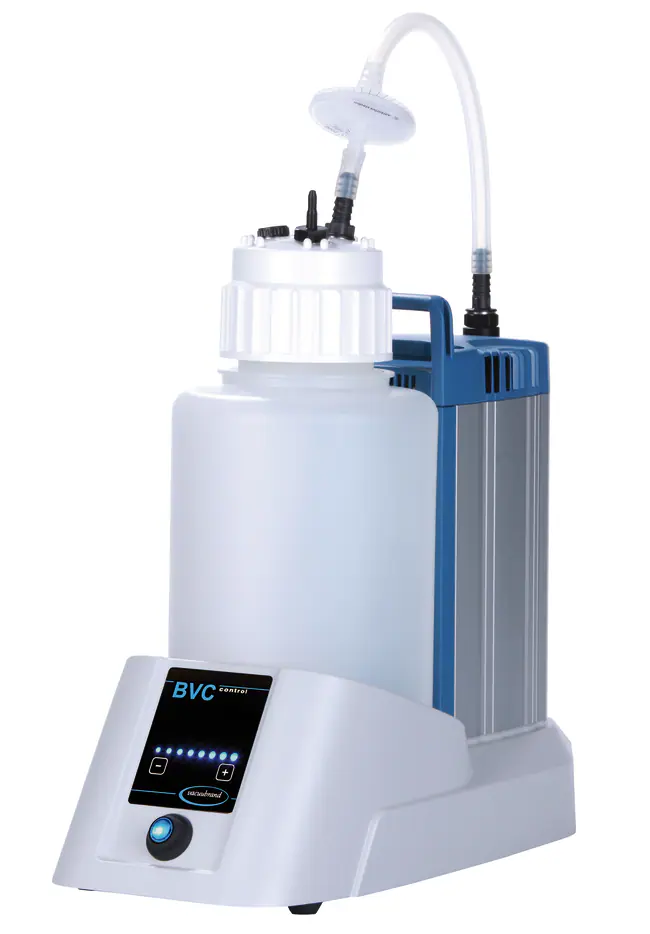

The BVC Control is an easy-to-use solution for fluid aspiration in cell culture labs. With its portable design as well as the option of adding a second hand controller, the BVC makes working in the lab more convenient. Built-in features like a 0.2 µm hydrophobic filter and optional quick connect couplings increase safety while managing potentially harmful fluids. The BVC Control features a powerful, whisper-quiet and durable VACUUBRAND® chemistry diaphragm pump, eliminating the need for an external vacuum source. The vacuum pump automatically turns on and off on demand when using the VacuuHandControl VHCpro, which further reduces noise. The easy-to-use electronic touch panel allows for simple adjustment to the vacuum level to provide the proper suction power your application requires. The BVC Control comes standard with a VacuuHandControl VHCpro and is available with either a 2 L glass collection bottle for use with aggressive disinfectants or a heavy-duty 4 L polypropylene bottle. The BVC family of fluid aspiration systems is designed from the ground up to meet the needs of the modern cell culture laboratory.
Technical data and graphs
Max. pumping speed 50 Hz | 0.7 m3/h (Vacuum pump) | |
Max. pumping speed 60 Hz | 0.5 cfm (Vacuum pump) | |
Ultimate vacuum | 150 mbar / 112 torr | |
Vacuum controller | Touchpanel | |
Control range | 150 – 850 mbar (adjustable) | |
Collection bottle | 4l Polypropylene | |
Max. back pressure (abs.) | 1.1 bar | |
Inlet connection | Suction controller | |
Outlet connection | Hose nozzle DN 8 mm / silencer | |
Rated motor power | 0.04 kW | |
Rated motor speed at 50/60 Hz | 1500/1800 min-1 | |
Protection class IEC 60529 | IP 40 | |
Weight | 7.7 kg | |
Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 49 dBA | |
NRTL certification | Yes | |
Items supplied | Fluid aspiration system complete with powerful chemistry diaphragm pump, collection bottle, adjustable suction power control via touch panel, aspiration hand set VHCpro and protection filter, ready for use with manual. | |
Rated mains voltage range 1 | 100-115 V | |
Rated mains voltage range 2 | 120 V | |
Mains frequency 1 | 50-60 Hz | |
Mains frequency 2 | 60 Hz |
