Inclues:

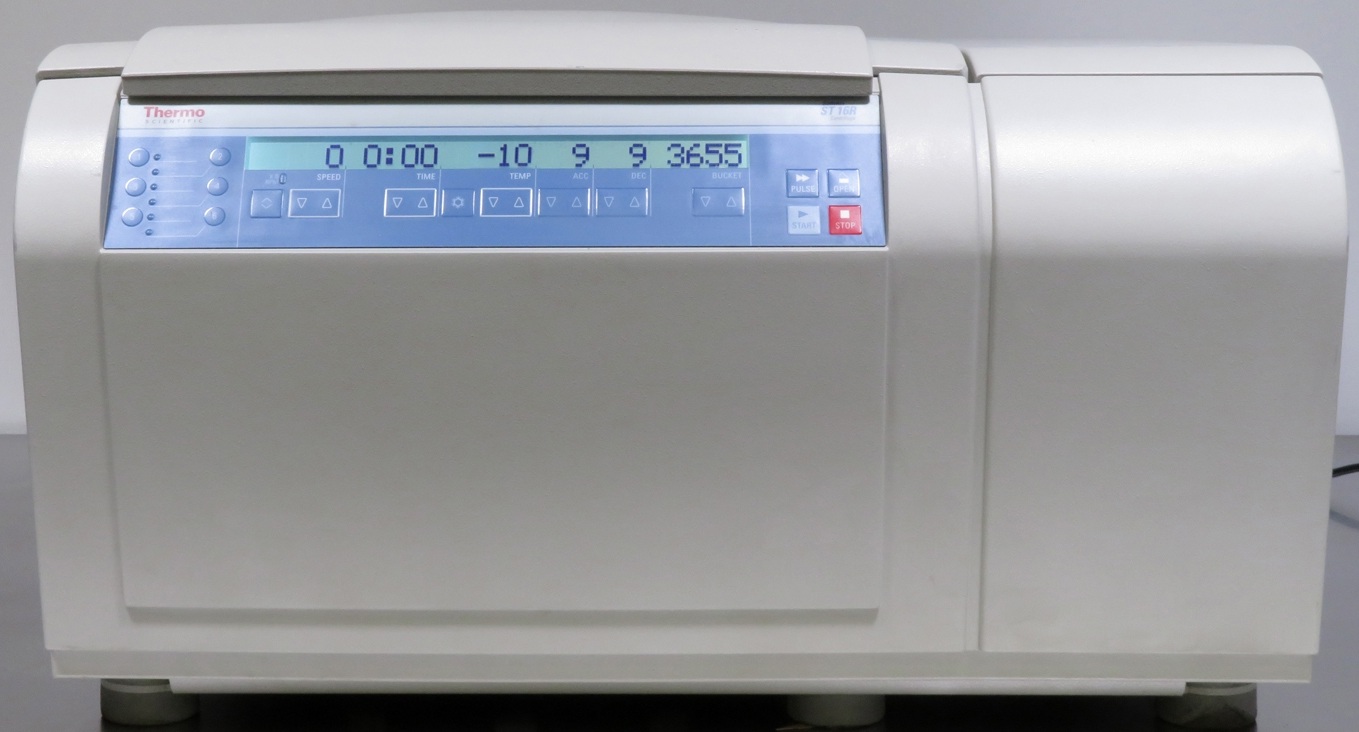

Sorvall ST 16R (75004381)

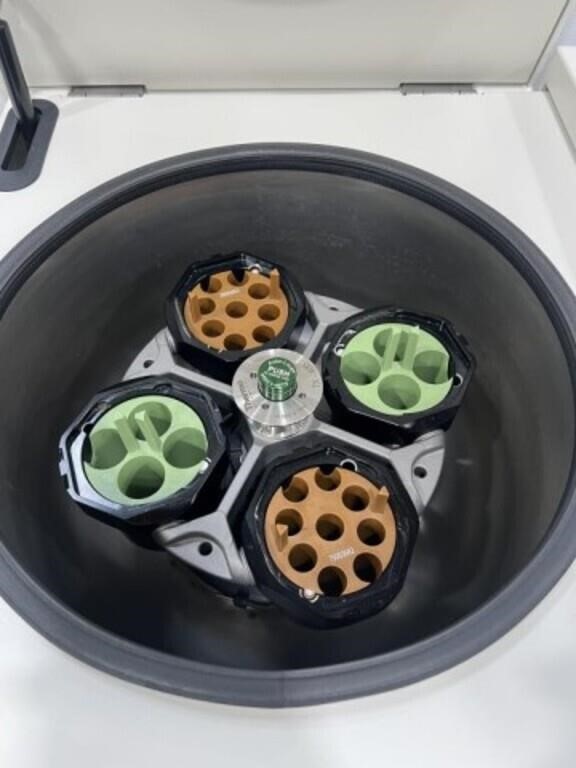

TX-200 Swinging Bucket Rotor (75003658)
200mL Round Buckets (set of 4) (75003659)
4 Adapters

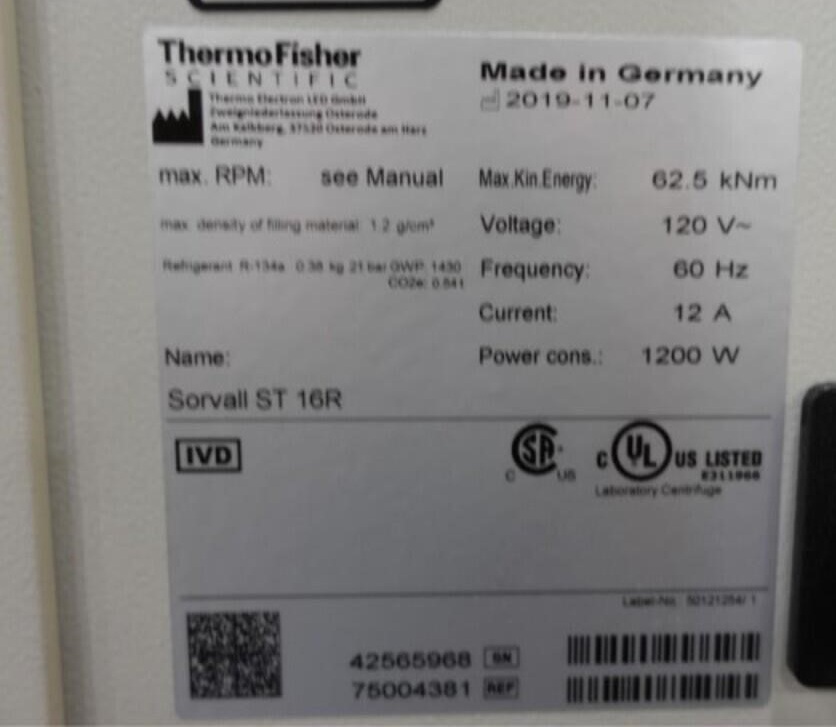

(Year of Manufacture 2019)
Description
Exceptional capacity, ergonomic features and value
The Thermo Scientific Sorvall ST 16 general purpose centrifuge series is perfect for everyday sample processing, including clinical protocols, cell culture applications and microplate processing. The refrigerated version is ideal for handling temperature-sensitive sample processing between -10° and +40°C.
Easy To Use
- Intuitive controls simplify operation and provide detailed information on a wide range of operating parameters and processing status for optimal performance
- Patented motorized lid latch enables one finger downward motion for easiest closing and locking of centrifuge lid, even on tall benches

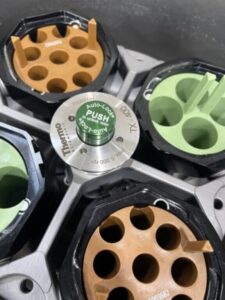

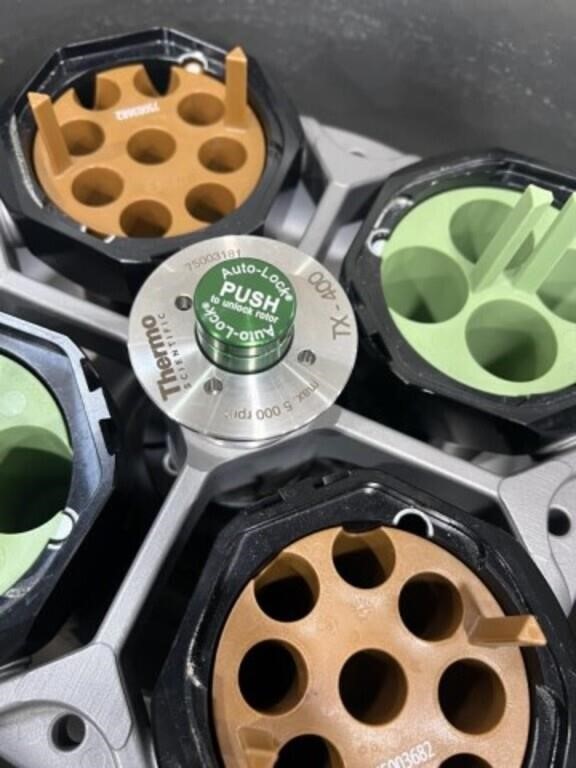

Auto-Lock™ Rotor Exchange
- Secure locking system allows easy push-button installation and exchange of rotors
- Saves time switching between applications

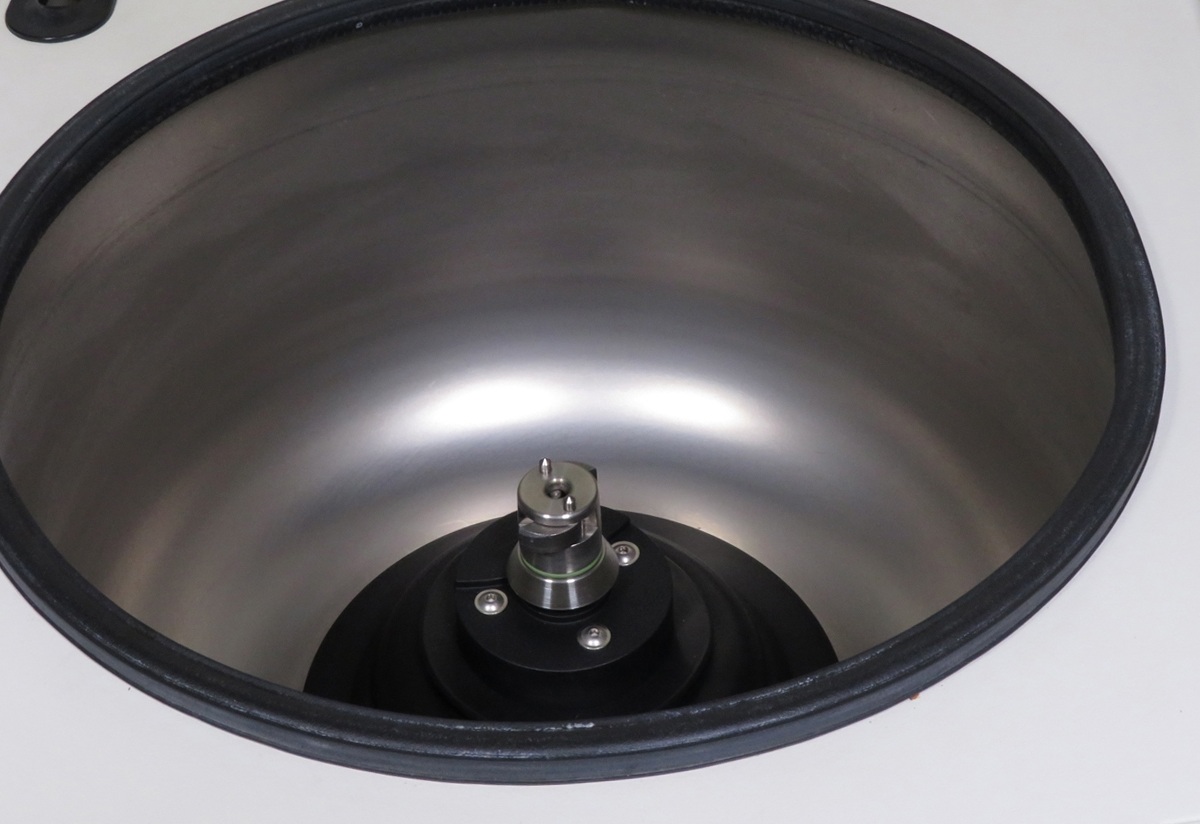

- Easy access to rotor chamber for quick cleaning, a healthier working environment and longer unit life
ClickSeal™ Bucket Sealing System
- Biocontainment solution seals with a snap; eliminates screw caps and complicated clips
- Glove-friendly, one-handed open/close capability
- Certified by CAMR™ in Porton Down, UK
SMARTSpin™ Technology
- Advanced rotor management system maximizes acceleration, braking and residual load imbalance for each rotor and bucket option
- Optimizes safety and improves separations
Space-Saving Design
- Compact dimensions optimize work area and ergonomic height and curved design ensure easy sample loading and unloading and easy cleaning
Outstanding Energy Efficiency
- Up to 40% energy consumption savings on industry standard protocols, such as standard blood separation or conical tubes processing
Ventilated Model ST 16
- Dimensions: 23.8L × 17.3W × 14.2 in.H [34.3 in.H open] (60.5 × 44 × 36cm [87cm open])
- Net weight: 126.8 lb. (57.5kg)
Refrigerated Model ST 16R
- CFC-free refrigeration system
- Temperature Range: -10° to +40°C
- Pre-Cooling Function with direct button
- 23.8L × 24.5W × 14.2 in.H [34.3 in.H open] (60.5 × 62.3 × 36cm [87cm open])
- Net weight: 201.7 lb. (91.5kg)
Applications:
Cell Culture, Clinical and Healthcare
Certifications
UL listed, CSA certified, CE marked, Certified Biosafety
Compliance
IVD Compliant, IEC 61010-1, IEC 61010-2-202, IEC 61010-2-101
Specifications
| UL listed, CSA certified, CE Certified Biosafety; IVD Compliant, IEC 61010-1, IEC 61010-2-202, IEC 61010-2-101 | |
| 1.6 L | |
| 5,500 rpm | |

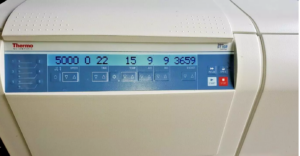

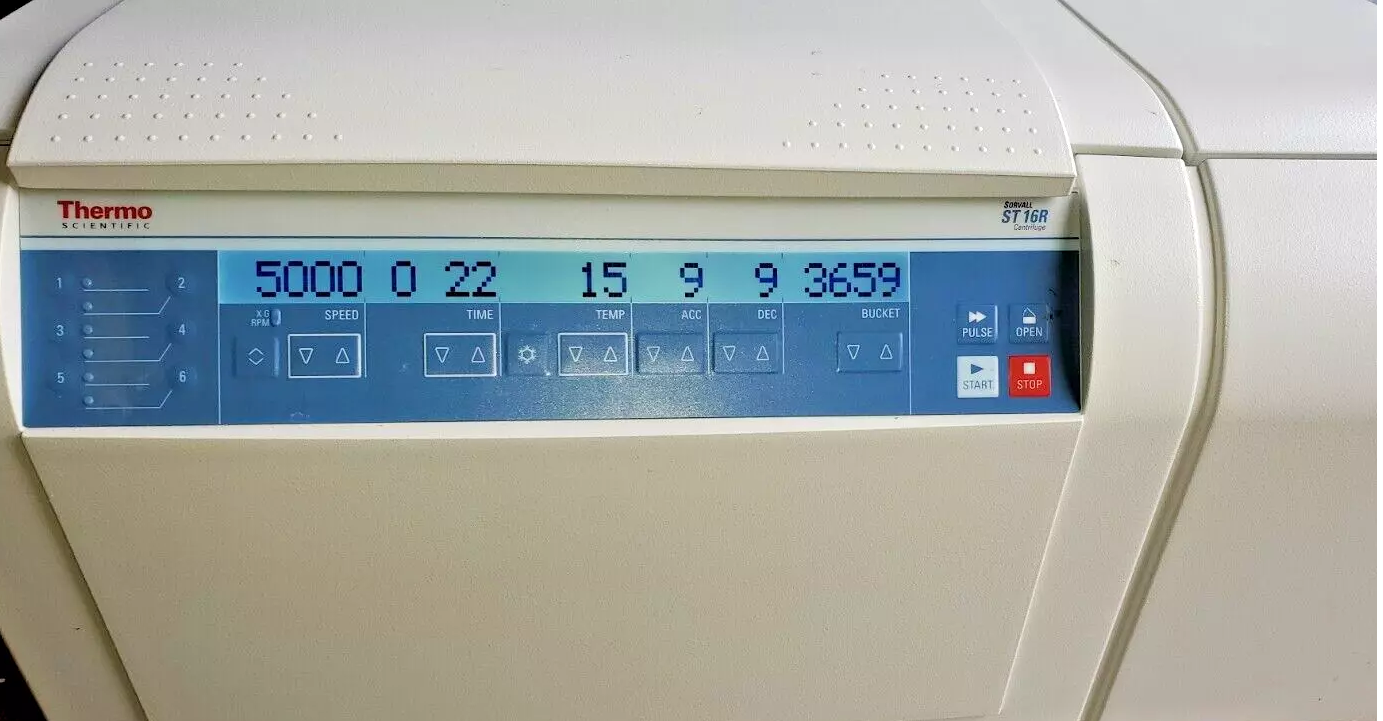

| Color Graphic Display | |
| Sorvall ST 16R (75004381) TX-200 Swinging Bucket Rotor (75003658) 200mL Round Buckets (set of 4) (75003659) |
|
| Sorvall ST 16R Everyday Separations Clinical Package | |
| 6 programs, direct access | |
| Yes | |
| Auto-Lock rotor exchange system, SMARTspin imbalance detection system, Certified ClickSeal biocontainment system, language selection, 9 acceleration/10 braking profiles, motorized lid latch | |
| No | |
| 23.8 in. | |
| 24.5 in. | |
| 14.2 in. | |
| 36 cm | |
| 201.7 lb. (91.5 kg) | |
| 1200 w |
| Microprocessor | |
| 5,580 x g | |
| Yes | |
| Direct, Brushless Induction Low Profile | |
| 15,000 to 15,999 rpm | |
| <61 dB(A) | |
| TX-200 Swinging Bucket Rotor | |
| 9 hr. 99 min. plus HOLD | |
| -10°C to +40°C | |
| 14.2 x 24.5 x 23.8 in. (36 x 62.3 x 60.5 cm) | |
| 60.5 cm | |
| 62.3 cm | |
| 34.3 in. | |
| 87 cm | |

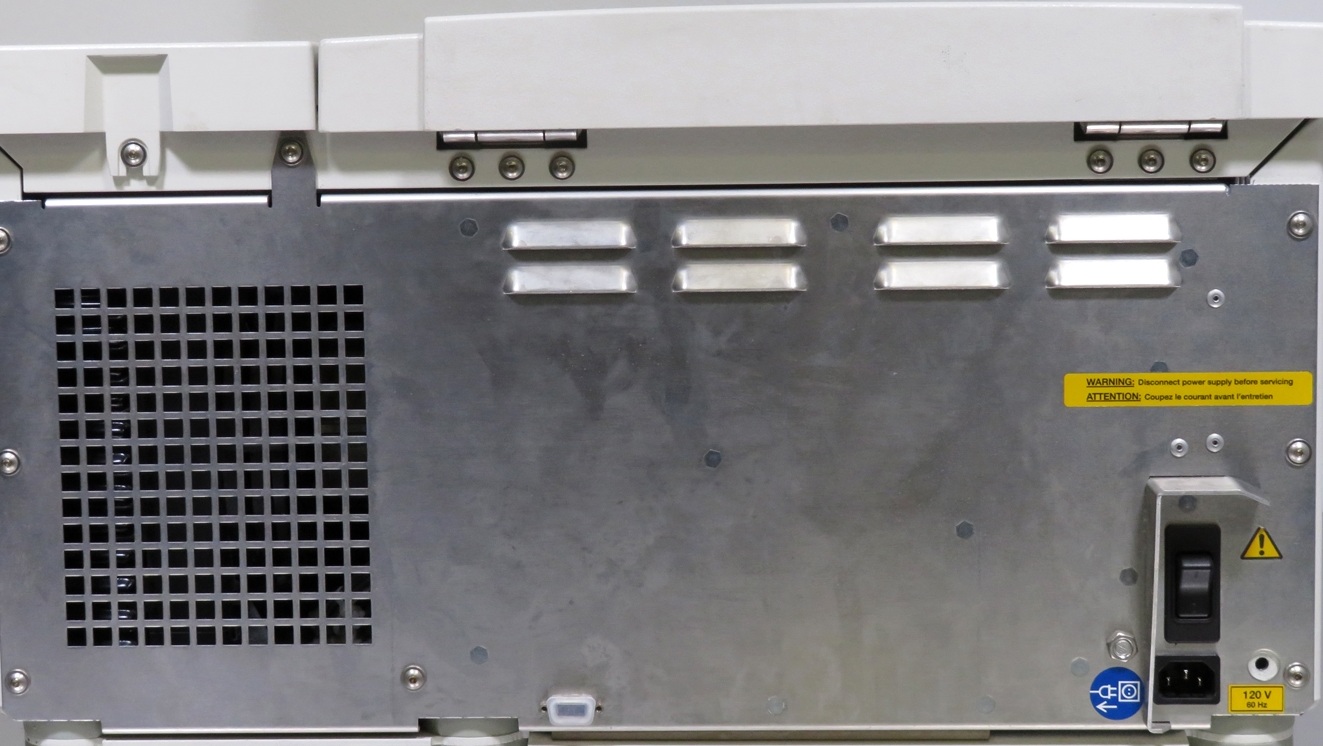

| 120 V 60 Hz |
