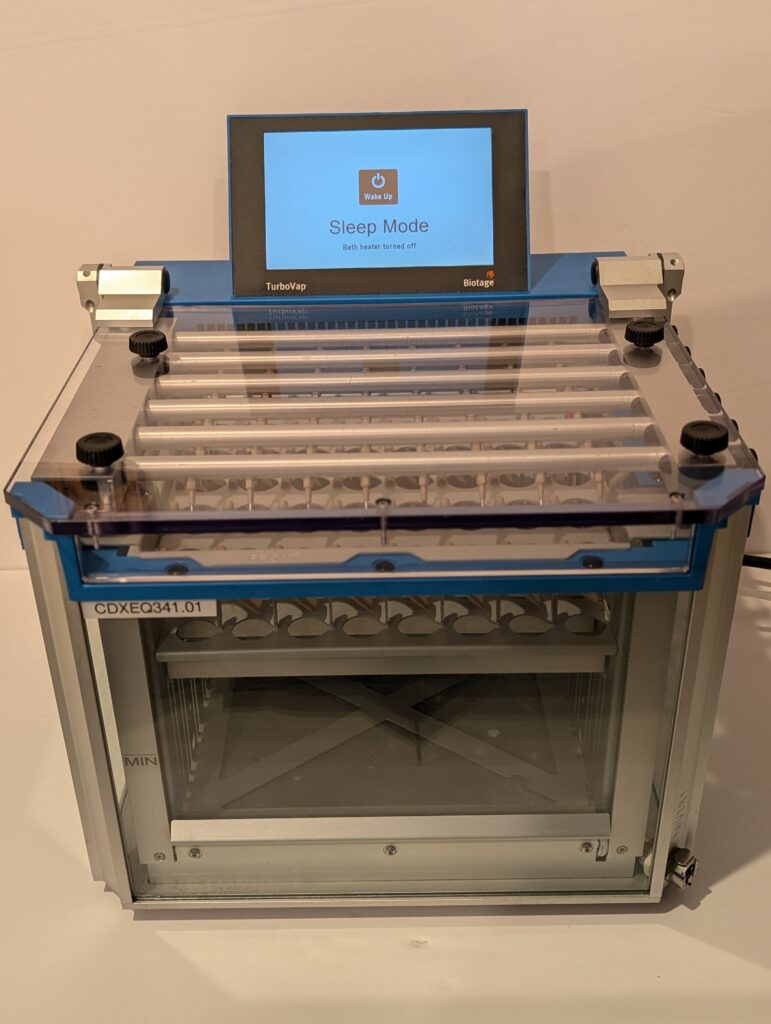

Biotage TurboVap LV Automated Solvent Evaporation System

TurboVap® LV is a second generation product for solvent evaporation which builds on the solid foundations of the historic TurboVap product line and incorporates many new customer driven features. It still features the highly efficient patented gas vortex shearing technology, which is synonymous with the TurboVap brand.

Evaporation of up to 48 samples with independent control of flow in each row. Can be used in either 24 or 48 position mode. Compatible with tube sizes ranging from 10 to 32 mm (outer diameter) and from 32 up to 165 mm in length.

The new TurboVap® is designed around a common chassis with interchangeable accessories, allowing users to switch quickly between configurations for a wide range of sample sizes and applications.

TurboVap LV Multi racks allow a larger selection of tubes and vials to be evaporated from one rack based upon outer vial dimension. This saves storage space at a your facility and also negates the need for custom racks to fulfill non-standard vials designs.

Flow gradients within a method means that gas flow can be gradually increased as the evaporation cycle progresses. The low flow rate early in the process promotes gradual evaporation. As the sample evaporates and more space is available in the tube/vial, the gas flow can be increased to further speed evaporation. Evaporation proceeds optimally, avoiding splashing and eliminating the possibility of cross contamination.

Individual removable nozzles ensure that cleaning and maintenance in the instance of a blockage is easy and straightforward. Replacement takes a matter of seconds. Simplifying maintenance and reducing operating costs. Adjustable manifold nozzles ensure that optimum vortex shearing action and therefore evaporation speeds and recovery can be achieved. This adjustment can be made in real time during evaporation.

Easy water bath management. The drain port on system ensures that emptying and filling of the water bath is quick and trouble free. Makes it easy to change the heating bath water for system cleanliness without having to carry the unit to a sink (as with other evaporators)
