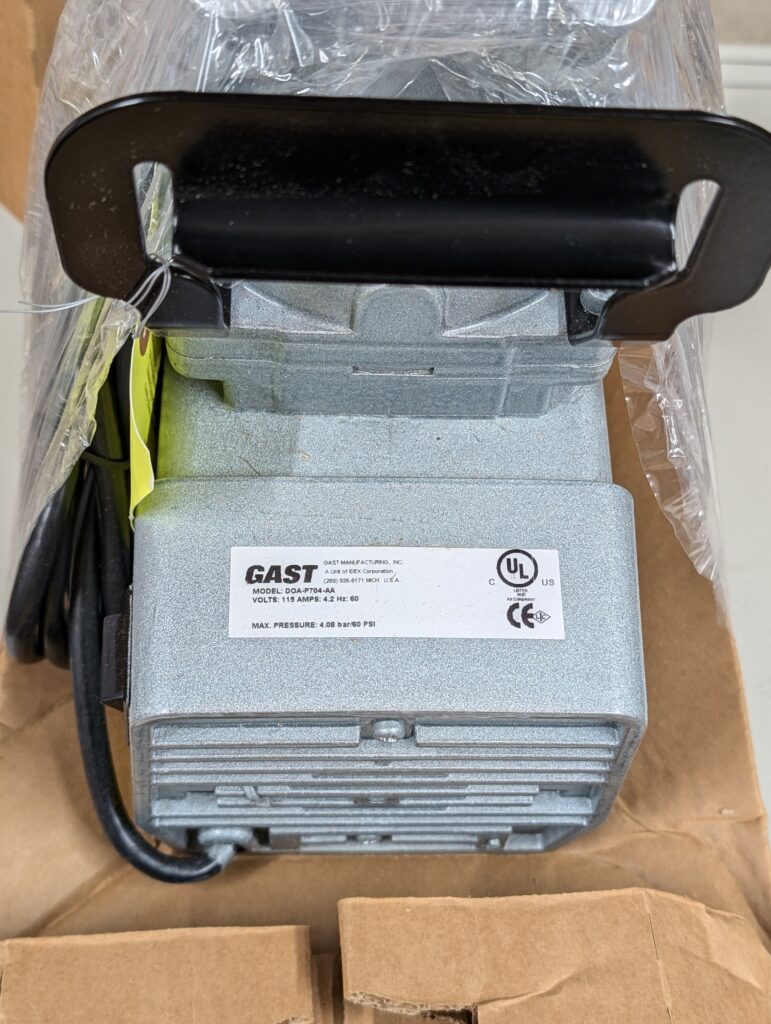

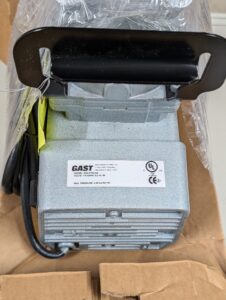

DOA-P704-AA
With a compact, yet durable and rugged construction, the DOA provides oil-less operation, which ensures that the discharge air remains free of lubricant contamination. It’s well suited for noise sensitive environments like medical laboratory applications, due to the low noise and vibration operation. Additionally, the unit requires minimal power consumption and can be used as a compressor or vacuum pump for maximum versatility.
Description
Pressure/vacuum pumps with 1/8hp motor for medium pressure and solid vacuum applications
Includes vacuum and pressure regulators.
- Produce maximum gauge pressure of 60psig (413kPag)
- Vacuum to 26 in. of mercury

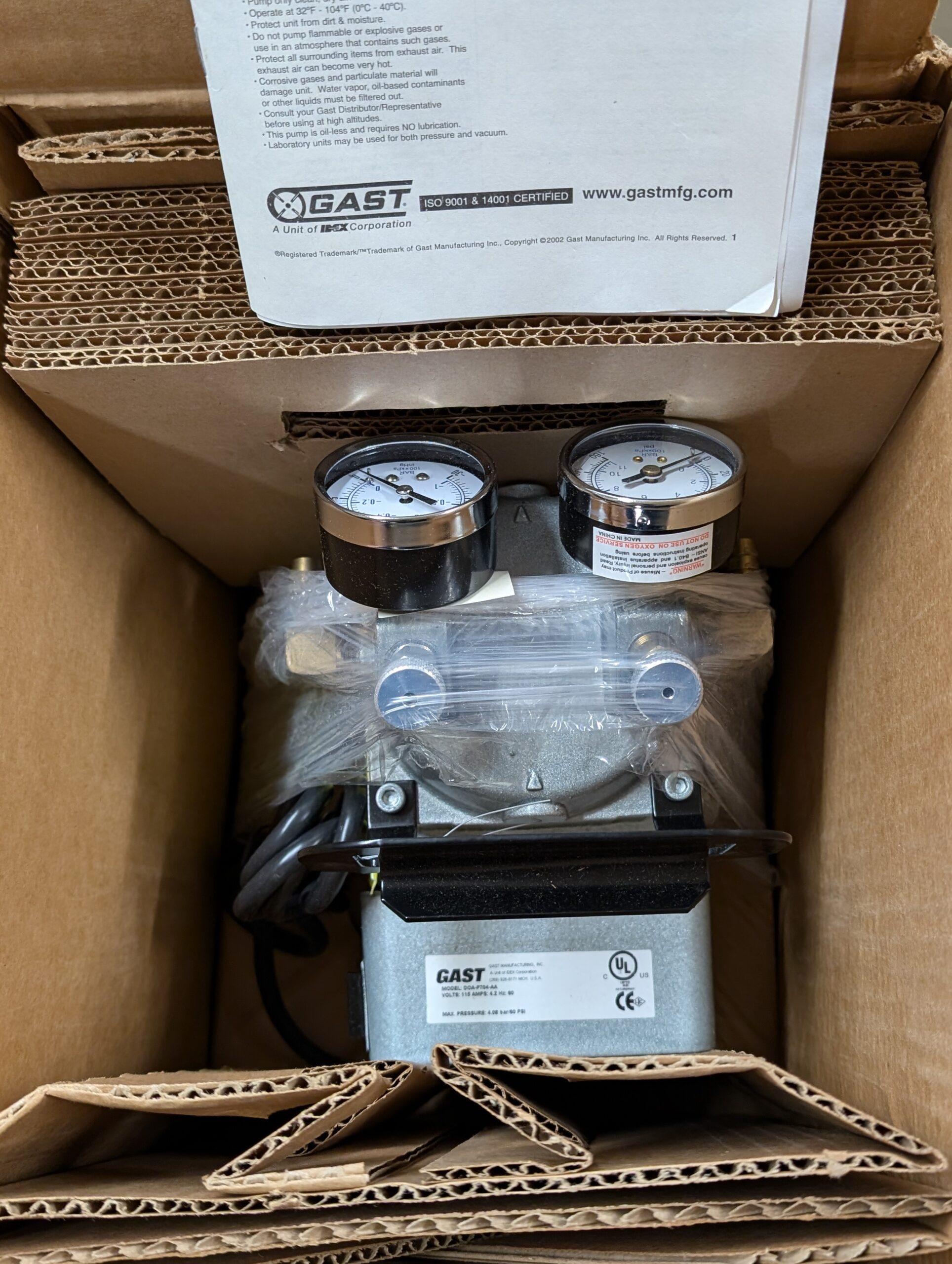

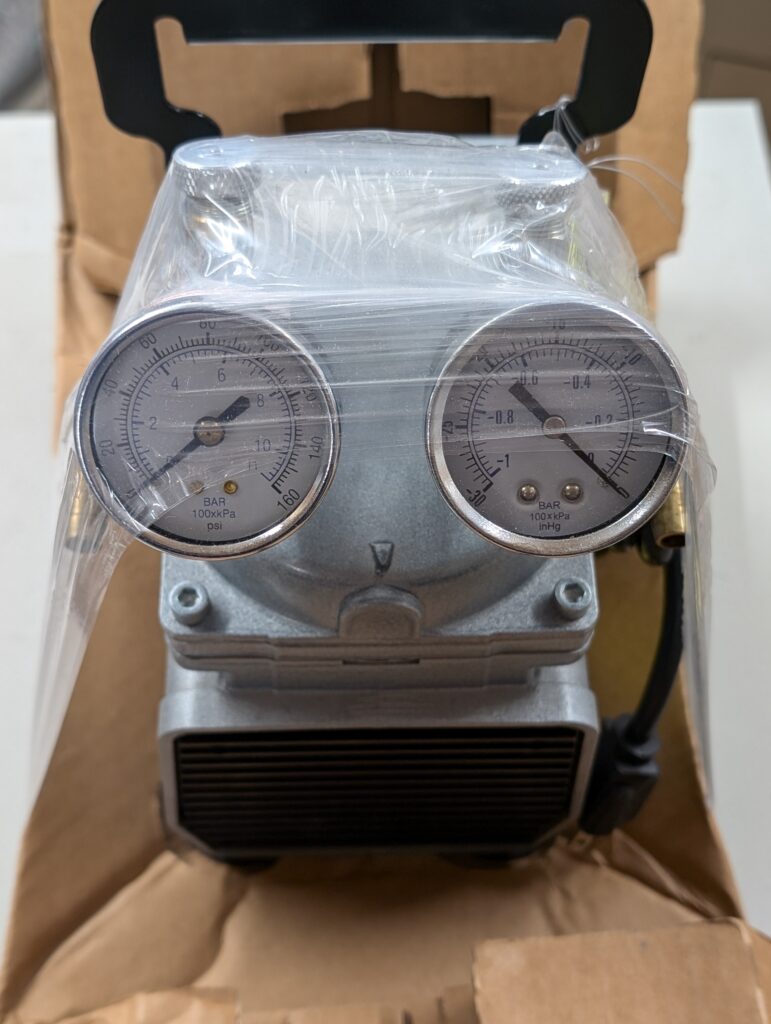

- Separate vacuum and pressure gauges, graduated from 0 to 60psig (5psig increments) and 0 to 25 in.Hg (1/2 in.Hg increments)
- ON/OFF switch on pump body
- Aluminum housing with rubber feet and handle
- Hose connection diameters, 3/8 in. O.D. × 1/4 in. I.D. (9.5 × 6.4mm)

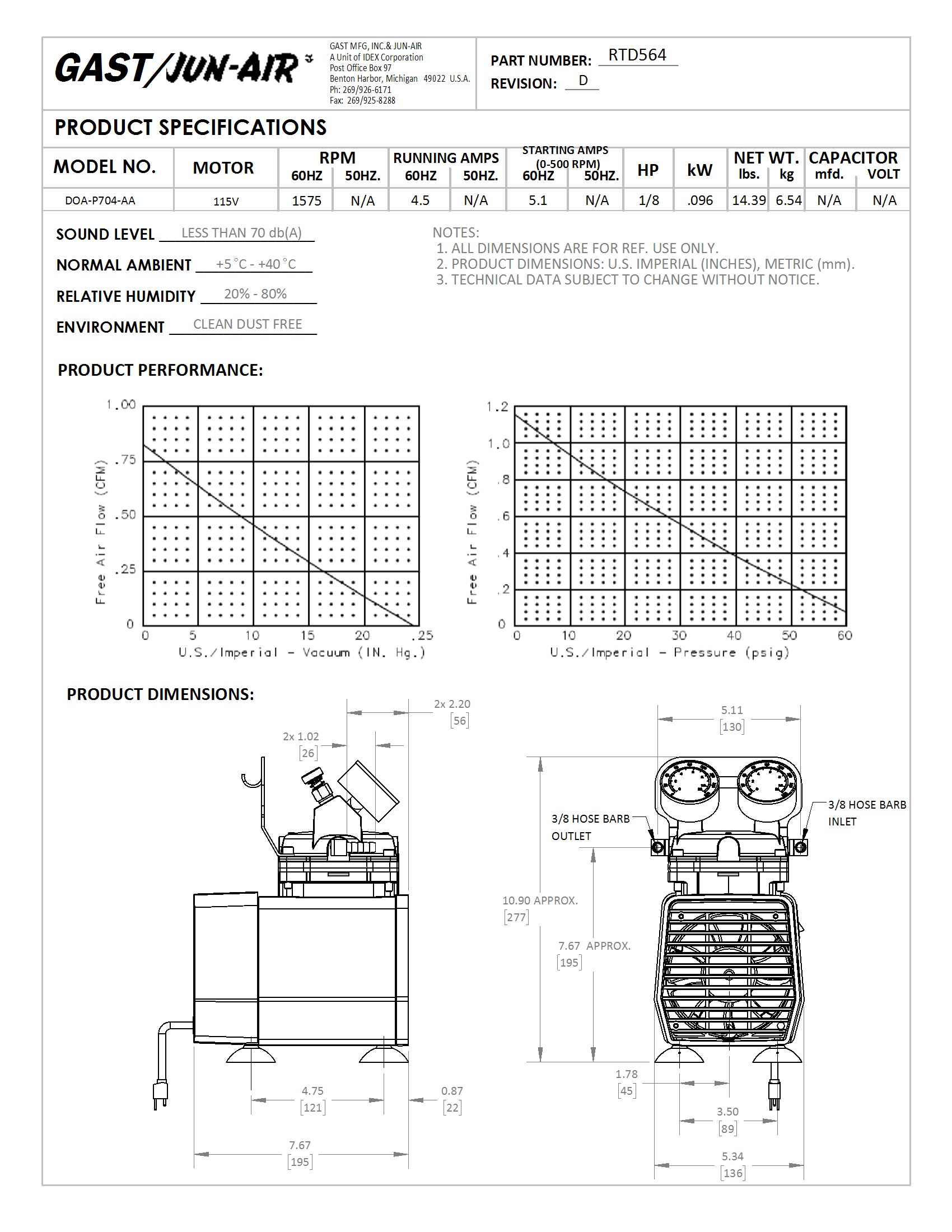

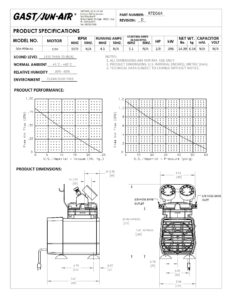

Specifications
| 26 in. of mercury | |
| Shaded pole | |
| Power cord | |
| UL, cUL | |
| 16 lb. | |
| 100°F | |
| 31.2 L/min. | |
| 4.2 bar |
| 0.125 hp | |
| 4.2 A | |
| 1575 rpm | |
| 115 V 60 Hz | |
| 7.3 kg | |
| 38°C | |
| 7.75 in. |
